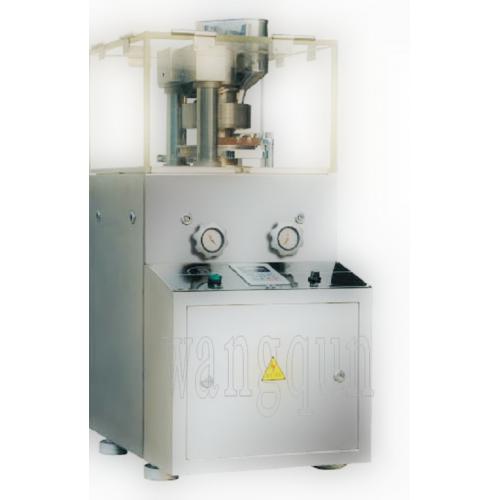

ZP5/7/9 旋转压片机
ZP5/7/9 Rotary Tablet Press
用途说明
1、 本机是小型化的压片机，它主要用于小规模的片剂生产及制药、化工、食品、电子等工业部门的工艺研究，确认颗状原料能否压制成片剂的重要设备。
2、 本机符合GMP标准要求。
3、 本机适用于能压制成片剂（本机压力范围内）的，而且含粉量（100目以上）不超过10%的颗粒状原料的压制。
4、 本机适用于压制5-20毫米的圆形、异形和刻字片剂。
5、 本机不适用于半固体，潮湿颗粒、低熔点易吸潮原料和无颗粒的粉末压片。
Application
1. ZP 5/7/9 Rotary Tablet Press is a small tablet press for small scale production, and technical study in pharmaceutical, chemical, foodstuff and electronics industries. It serves as an important equipment to verify the pressing of tablets from granular raw materials.
2. The machine conform to GMP requirements.
3. It is applicable to press granule raw materials (within the pressing scope of the machine), with powder (above 100 mesh) contents no more then 10%.
4. It is applicable to press 5-20 mm circular and irregular tablets and tablets carving with letters.
5. It is not applicable to press tablets with semi-solid or wet particles, hygroscopic, low-melting-point materials, and powder materials.
技术参数
Technical Parameters
|
Items
|
Unit
|
Index
|
|
A
|
B
|
|
转台冲模数 Number of Dies
|
付set
|
5,7,9
|
|
***大工作压力 Max. Working Pressure
|
KN
|
40
|
60
|
|
***大压片直径 Max. Dia. of Tablet
|
mm
|
13
|
20
|
|
***大压片厚度 Max. Thickness of Tablet
|
mm
|
6
|
|
***大填充深度 Max. Depth of Filling
|
mm
|
15
|
|
***大生产能力 Max. Production Capacity
|
pc/h
|
9600,13440,17280
|
|
转台工作直径 Working Diameter of the Turntable
|
mm
|
200
|
|
转台***高转速 Turntable Speed
|
r/min
|
32
|
|
中模直径Dia. of middle mould
|
mm
|
26
|
|
中模高度 Height of middle mould
|
mm
|
22
|
|
上、下冲杆直径 Diameter of up and down punch pole
|
mm
|
22
|
|
上、下冲杆长度 Length of up and down punch pole
|
mm
|
115
|
|
机器外形尺寸 Overall Size(L*W*H)
|
mm
|
750*550*1100
|
|
机器净重 Net Weight
|
kg
|
300
|
350
|
|
主电机功率 Main Motor Power
|
kw
|
1.5
|
2.2
|
|
电压 Voltage
|
v
|
220-380
|
