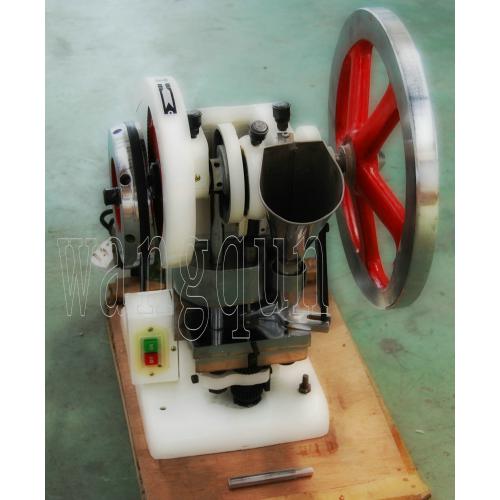

TDP-1.5T、5T实验型单冲压片机
TDP-1.5T、5T Laboratory Single-punch Tablet Press
用途说明
本机为小型机动台式压片机，也可以手动操作。可连续冲压各种片剂。
本机结构简单、操作方便、自动化程度高。适用于实验室或小批量生产各种药片、糖片、钙片、异形片等。
本机可将各种小颗粒、粗粉末冲压成圆形或异形的片剂，不适用冲压大颗粒固体，潮湿或极细的粉末。
Application
l The machine is small desk-top tablet press, which can press various tablets continuously by means of manual operation.
l With simple structure, convenient operation, the machine has high degree of automation. It can be used for small batch or laboratory production of a variety of medical tablets, sugar tablets, calcium tablets and so on.
l The machine can press varieties of small particles and coarse powder into round or irregular tablets. It is not suitable to press large granular solids, wet powder or too fine powder.
技术参数
Technical Parameters
|
型号 Model
|
单位 Unit
|
TDP-1.5
|
TDP-5
|
|
***大压片压力 Max. Pressure
|
千牛 KN
|
15
|
50
|
|
***大压片直径Max. Dia. of Tablet
|
毫米mm
|
Φ14
|
Φ18
|
|
***大填充深度 Max. Depth of Fill
|
毫米mm
|
11
|
15
|
|
上下冲杆直径 Dia. of up and down punch pole
|
毫米mm
|
Φ10
|
Φ10
|
|
中模直径 Dia. of Middle Mould
|
毫米mm
|
Φ28
|
Φ33
|
|
压片产量 Production Capacity
|
片/时 pc/h
|
3600
|
2000-3600
|
|
电机功率 Main Motor Power
|
千瓦 kw
|
0.37
|
0.55
|
|
机器净重 Net Weight
|
公斤 kg
|
85
|
145
|
|
外形尺寸 Overall Size (L*W*H)
|
毫米 mm
|
540*450*640
|
600*500*700
|
